Đấu dây

Mạch động lực​

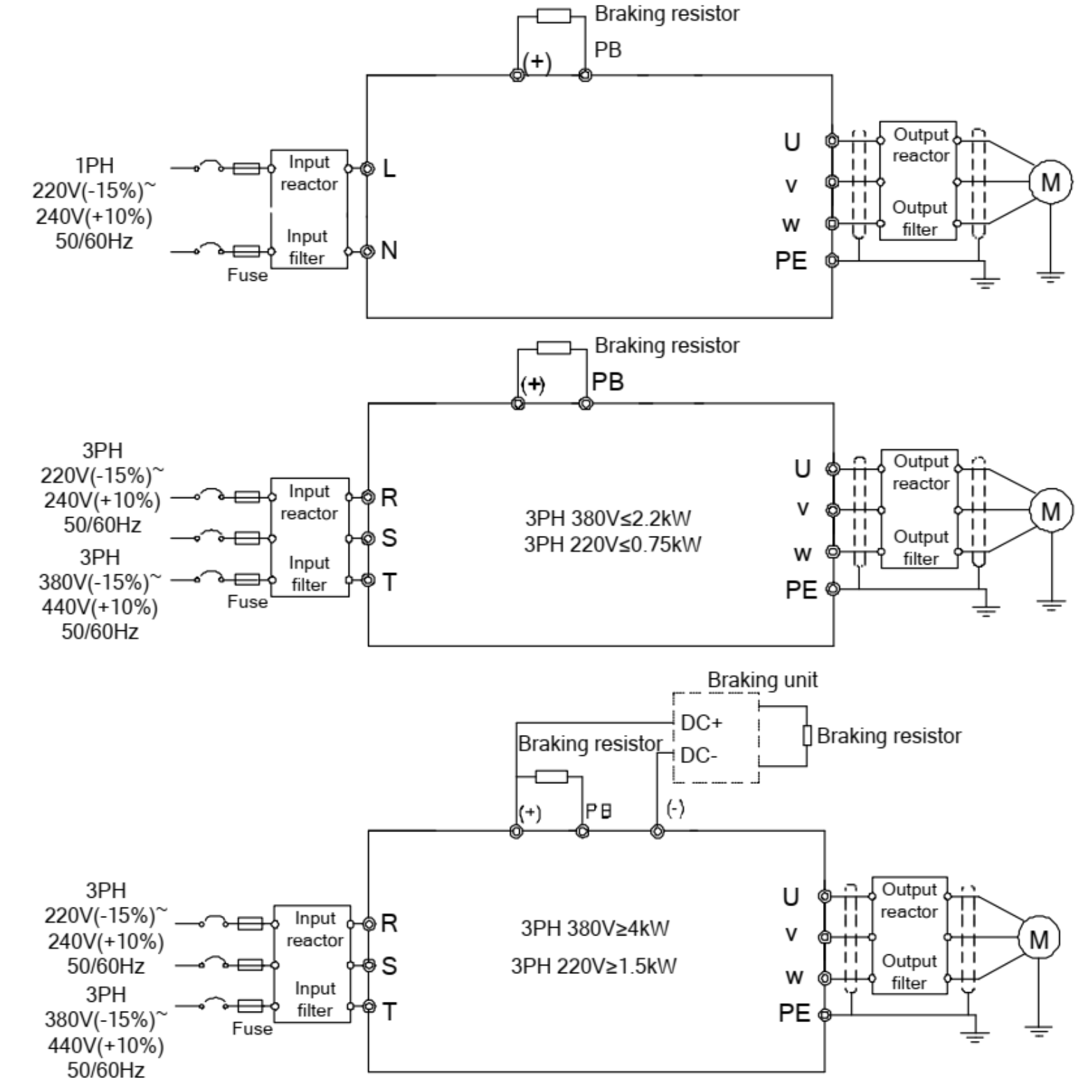

Sơ đồ​

Cỡ dây​

ModelRST/UVW
(Nên dùng)		PE
(Nên dùng)		RST/UVW
(Cỡ Terminal)		PB,(+)PECỡ vítLực siết (Nm)
GD20-0R4G-S21.51.51–41–41–4M30.8
GD20-0R7G-S21.51.51–41–41–4M30.8
GD20-1R5G-S22.52.51–41–41–4M30.8
GD20-2R2G-S22.52.51–41–41–4M30.8
GD20-0R4G-21.51.51–1.51–1.51–1.5M30.8
GD20-0R7G-21.51.51–1.51–1.51–1.5M30.8
GD20-1R5G-22.52.51.5–62.5–62.5–6M41.13
GD20-2R2G-22.52.51.5–62.5–62.5–6M41.13
GD20-004G-22.52.51.5–62.5–62.5–6M41.13
GD20-5R5G-2444–104–104–10M52.3
GD20-7R5G-2664–104–104–10M52.3
GD20-0R7G-41.51.51–1.51–1.51–1.5M30.8
GD20-1R5G-41.51.51–1.51–1.51–1.5M30.8
GD20-2R2G-41.51.51–1.51–1.51–1.5M30.8
GD20-004G-42.52.52.5–62.5–62.5–6M41.13
GD20-5R5G-42.52.52.5–62.5–62.5–6M41.13
GD20-7R5G-4444–104–104–10M52.3
GD20-011G-4664–104–104–10M52.3
GD20-015G-4664–104–104–10M52.3
GD20-018G-4101010–1610–1610–16M52.3
GD20-022G-4161610–1610–1610–16M52.3
GD20-030G-4251625–5025–5016–25M62.5
GD20-037G-4251625–5025–5016–25M62.5
GD20-045G-4351635–7035–7016–35M810
GD20-055G-4502535–7035–7016–35M810
GD20-075G-4703535–7035–7016–35M810
GD20-090G-4955070–12070–12050–70M1235
GD20-110G-41207070–12070–12050–70M1235

Mạch điều khiển​

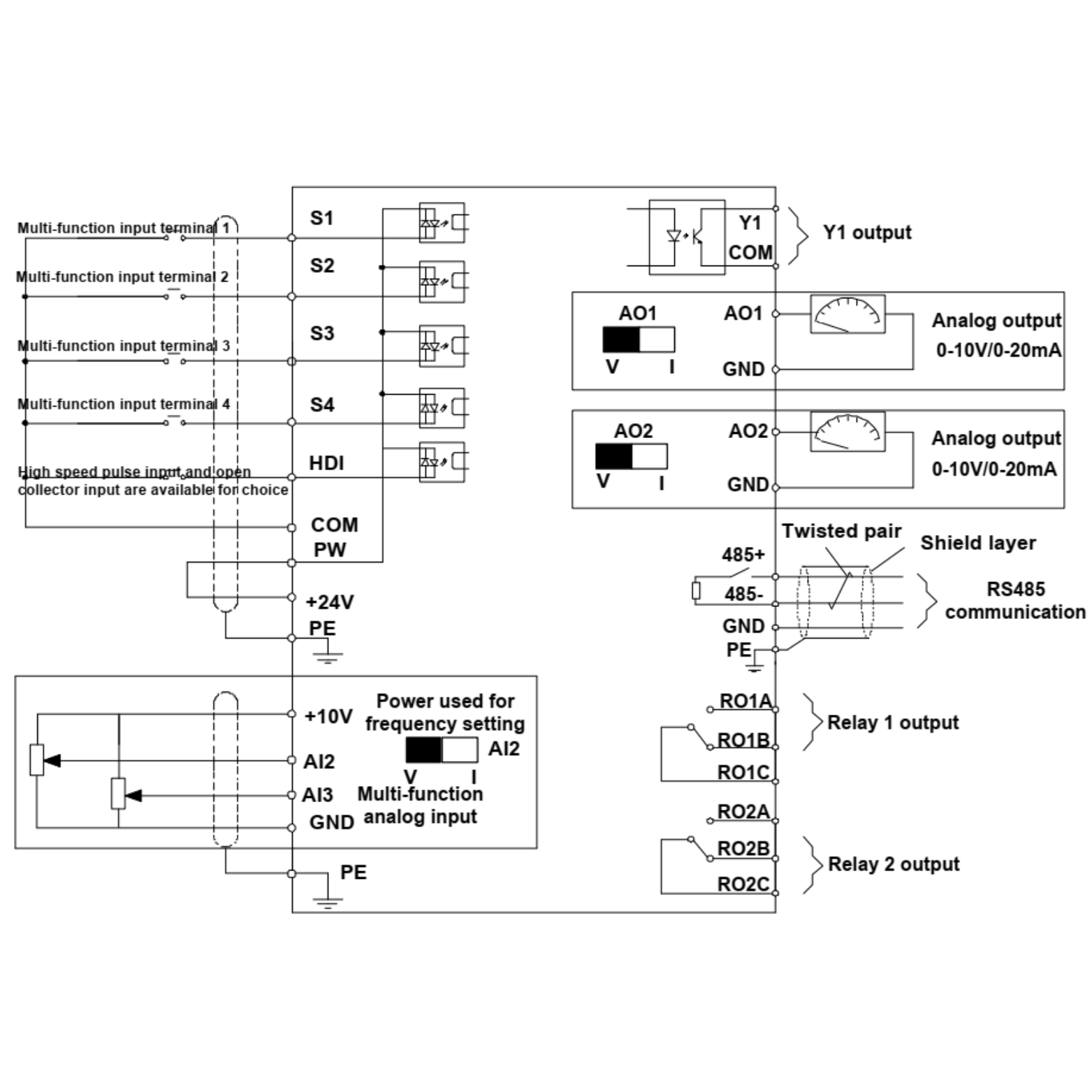

Sơ đồ​

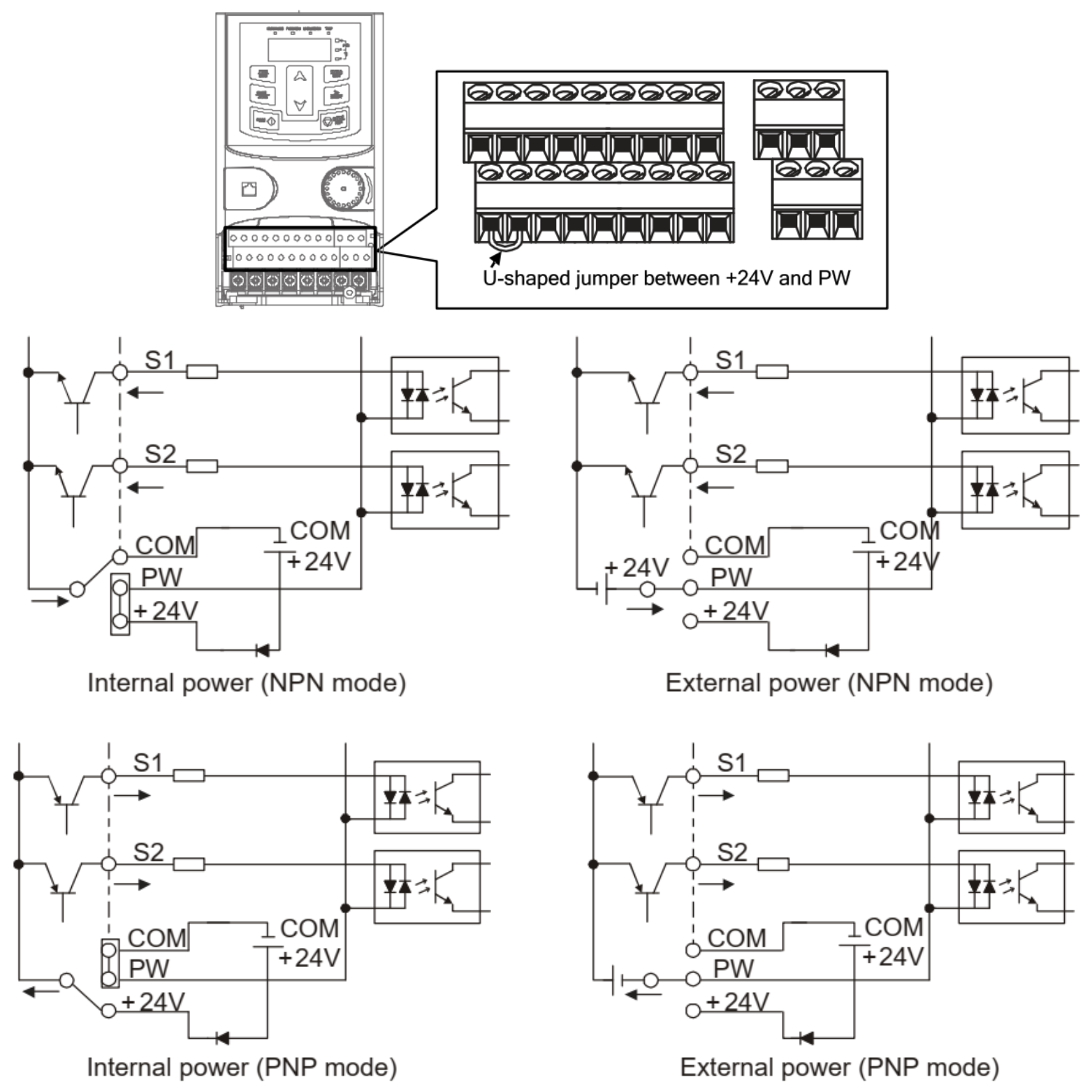

Kiểu đấu NPN và NPN​

Điều chỉnh jump chữ U để chuyển đổi giữa kiểu đấu NPN S1-COM và PNP S1-24V
